Certifications Approval and Compliances
UL
Wire UL cUL AWM 1571 HOOK-UP WIRES Cables
AWM 1571 PVC Insulated Single Cords Rating:600V 105 Standard:UL758 CSA-C22.2 AWM 1061 PVC Insulated Single Cords Rating:300V 80 Standard:UL758 CSA-C22.2
- Samples date :1-7days,Free with freight collect
- Delivery date :3000PCS12~15day
- MOQ :3000pcs/5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :100%TT
Inquiry
Message
Product Info
Description
AWM 1571 PVC Insulated Single Cords Rating:600V 105 Standard:UL758 CSA-C22.2 AWM 1061 PVC Insulated Single Cords Rating:300V 80 Standard:UL758 CSA-C22.2,Internal wiring of electronic and electrical equipment,and power adaptor for portable PC.
Features
The quality is good,Durable,Environmental protecti
Details

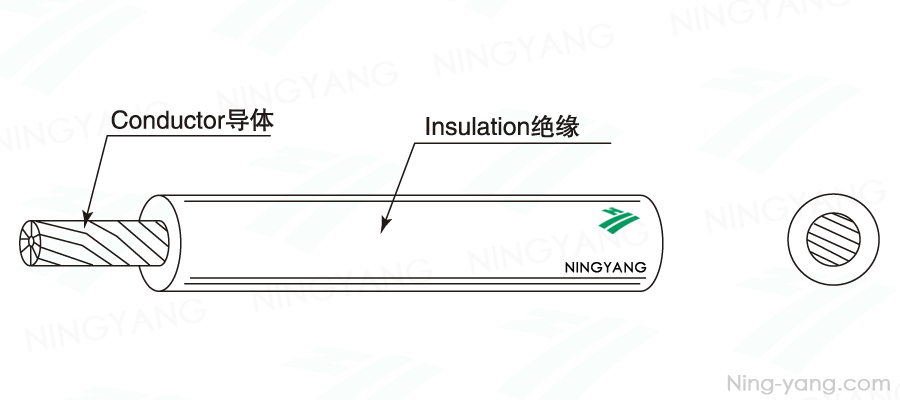

Wire UL cUL AWM 1571 HOOK-UP WIRES Cables Drawing (RoHS COMPLIANT)
UL 1011//UL758 UL1581 (NINGBO NINGYANG)
(Print wheel)印轮: RU AWM 2464 16~32AWG VW-1 80℃ 300V E225383 NINGYANG CRU AWM I/A 16-32AWG FT1 80℃ 300V -F-LF
End and connector
Wire UL cUL AWM 1571 HOOK-UP WIRES Cables End Drawing (RoHS COMPLIANT)
UL 1011//UL758 UL1581 (NINGBO NINGYANG)
Specifications
- Model : UL 1011
- Voltage : 300V
- Amperage : 10A
- Temperature Rating : 80℃
- Weight : 36g
- Color : Black is standard but any color available
- Cable Length : 305M/Reel、610M/Reel
Material
- Models Desc : 1-Conductor 1-Insulation
- Conductor Structure : 32AWG~16AWG
- Insulating Sheath Material : PVC, Rubber, Halogen-Free, Textile braid
- Conductor Material : Oxygen free copper (OFCU)
Quality
- Approvals : UL
- Standard : UL758 UL1581
- Antiflaming : PVC, Rubber, Halogen-Free, Textile braid
- Quality System : ISO9001:2008
- Testing : SGS/TUV
- Environmental : ROHS,REACH,PAHS
- Environmental mark :
More and more
- Patent : NY
- Country of Origin : Ningbo China
Available Cord / Cables Wire Styles
| Conductor | Insulatio | Insulatio | SpiraI | Jacket | Overall | |
| AWG | No./mm | mm | mm | No./mm | mm | mm |
| 32 | 7/0.08 | 0.23 | 0.70 | - - - | - - - | - - - |
| 30 | 7/0.102 | 0.30 | 0.90 | 28/0.10 | 0.35 | 1.80 |
| 30 | 7/0.102 | 0.20 | 0.70 | - - - | - - - | - - - |
| 28 | 7/0.127 | 0.26 | 0.90 | 28/0.10 | 0.35 | 1.80 |
| 28 | 7/0.127 | 0.26 | 0.90 | - - - | - - - | - - - |
| 26 | 7/0.16 | 0.26 | 1.00 | - - - | - - - | - - - |
| 24 | 7/0.20 | 0.25 | 1.10 | - - - | - - - | - - - |
| 22 | 17/0.16 | 0.32 | 1.40 | 37/0.12 | 0.58 | 2.80 |
| 22 | 17/0.16 | 0.25 | 1.25 | - - - | - - - | - - - |
| 20 | 26/0.16 | 0.43 | 1.80 | 57/0.10 | 0.56 | 3.10 |
| 18 | 65/0.127 | 0.30 | 1.78 | 47/0.12 | 0.59 | 3.20 |
| 16 | 54/0.18 | 0.32 | 2.15 | 54/0.12 | 0.61 | 3.60 |
