Certifications Approval and Compliances
JIS JET CCC SGS

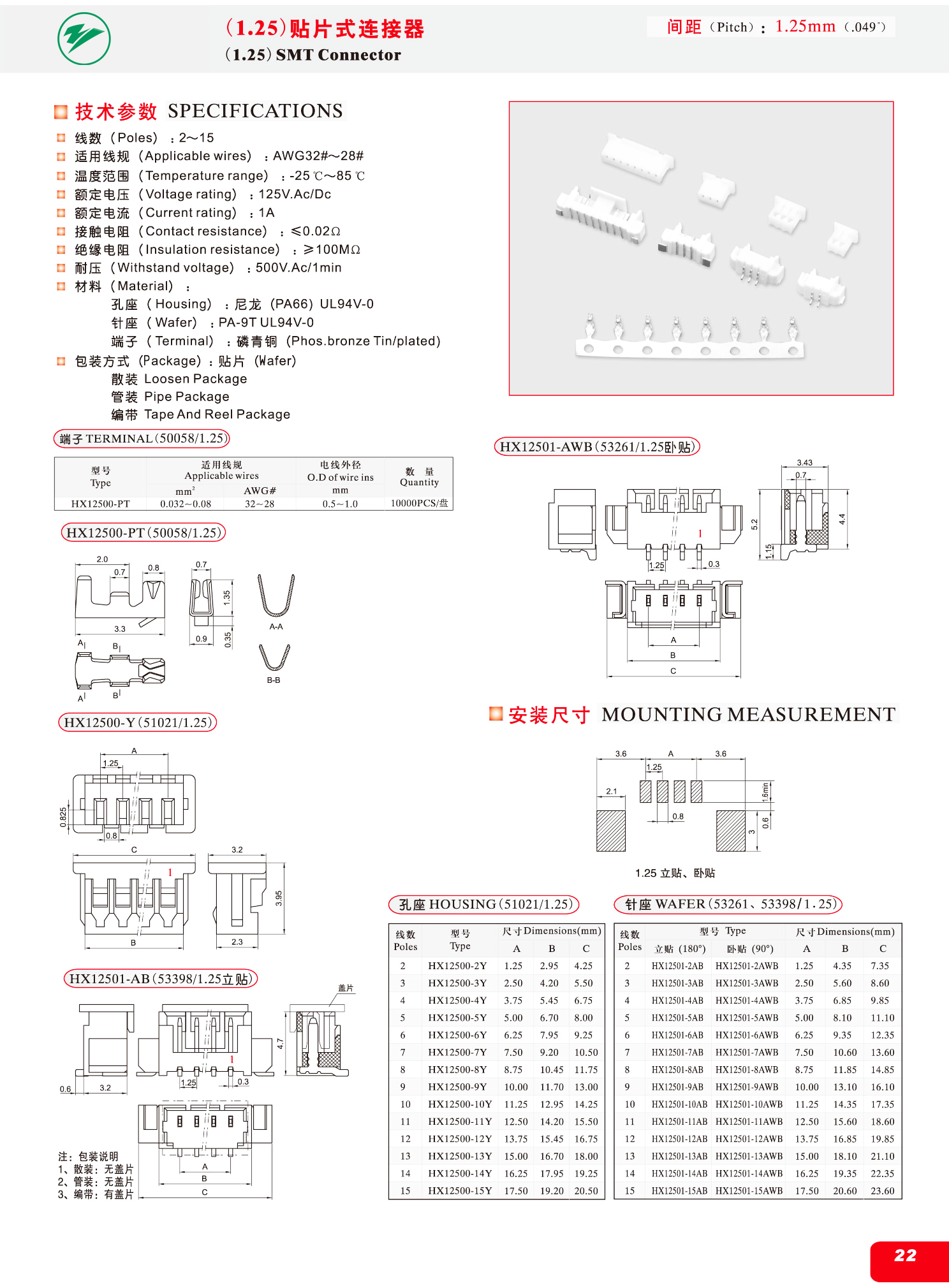

Patch type connector HX12500-HX12501-(1.25 SMT)
Patch type connector HX12500-HX12501-(1.25 SMT)
- Samples date :1-7days,Free with freight collect
- Delivery date :1-7 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :Wire Transfer
Inquiry
Message
Product Info
Description
Patch type connector HX12500-HX12501-(1.25 SMT)
Features
The quality is good, Durable, Environmental protec
Details
Specifications
- (Model): HX12500-HX12501-(1.25 SMT)
- (Voltage): 250V AC/DC
- (Withstandvoltage): 800V AC/1min
- (Amperage): 10A 20A 30A 40A 50A 60A 100A 200A
- (Contact resistance): ≤0.02Ω
- (Insulation resistance): ≥1000MΩ
- (Temperaturerange): -25℃~80℃
- (Color): Coppery Silver
Material
- (Models Desc): Bareness pre insulation
- (Material Structure): Bareness pre insulation
- (Skin Material): Tinning/Nickel plating
- (Conductor Material): Oxygen-free copper/Orichalcum
- (Insulating Material): PVC PA66
- (Plug housing): PA66 UL94V-0
- (Receptacle housing): PA66 UL94V-0
- (Wafer): PA66 UL94V-2(0)
- (Terminal): Phos.bronze Tin/plated
Quality
- (Approvals): JIS JET CCC SGS
- (Standard): JIS
- (Quality System): ISO9001:2008
- (Testing): SGS
- (Environmental): ROHS,REACH,PAHS,SGS,TUV
- (Environmental mark):
More and more
- (Patent): NYC
- (Country of Origin): Zhejiang China
