- Samples date :1-7days,Free with freight collect
- Delivery date :15-22 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :Wire Transfer

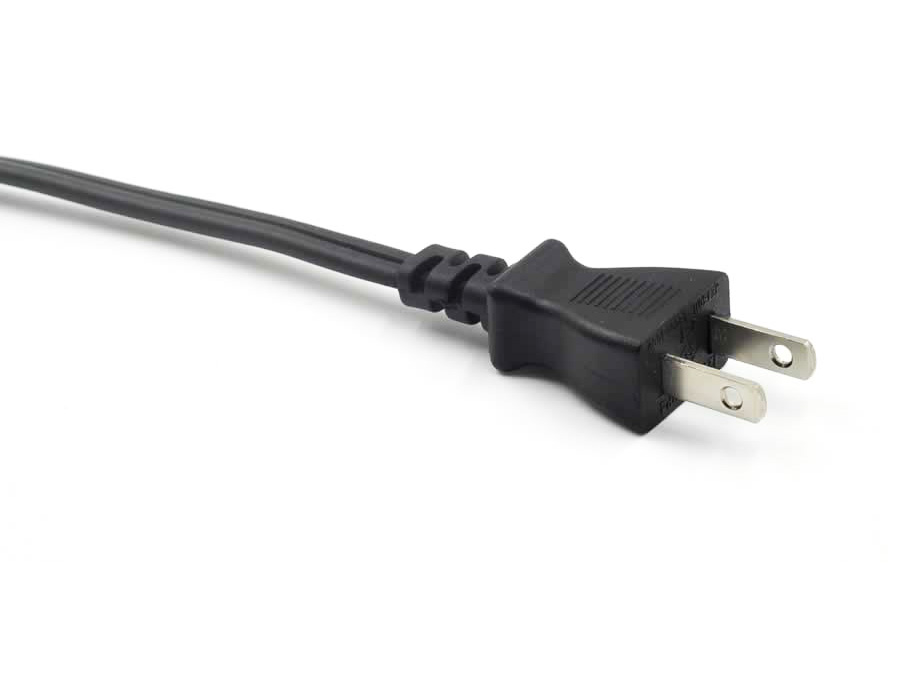

Japan Power Cords, 7A, 12A, 15A 125V, Type A Plug. The Japan AC Cords according to JIS C 8303 Standards with PSE certification. Non-Rewirable Plug 2 poles without Earthing Contact Moulded with Non-rewirable Flexible Cords. This Japan Two prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Japan market. Our Japan Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.

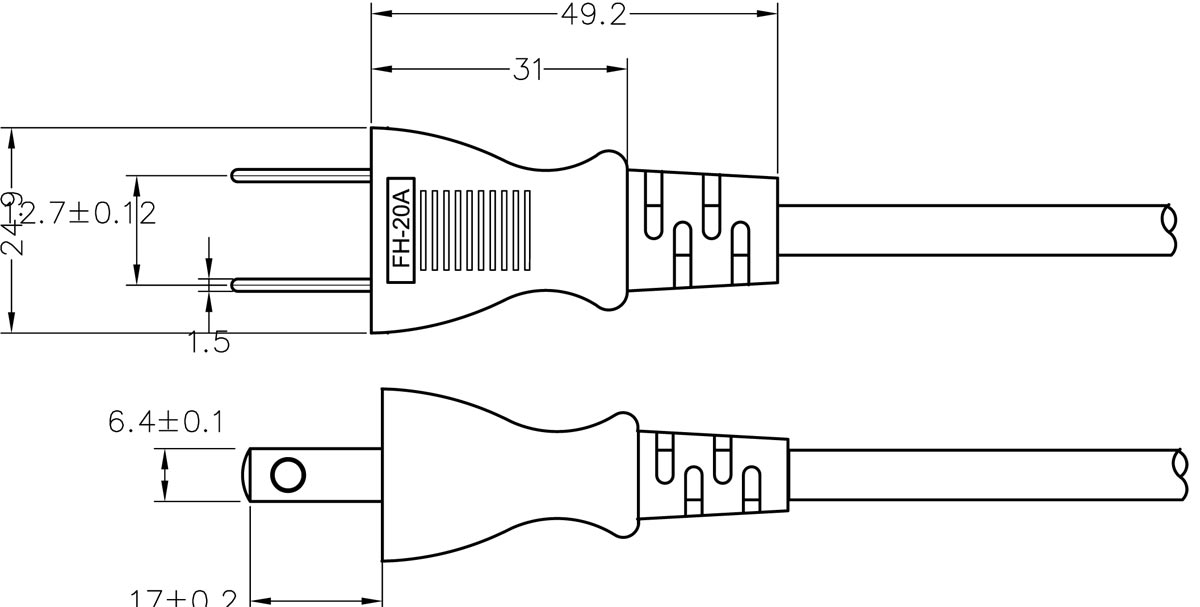

PSE JET Power cord 2p plug FH-20A Drawing (RoHS COMPLIANT)
FH-20A/PSE/Japan JIS C 8303 (NINGBO NINGYANG)
PSE JET Power cord 2p plug FH-20A End Drawing (RoHS COMPLIANT)
FH-20A/PSE/Japan JIS C 8303 (NINGBO NINGYANG)
- (Model)型号： FH-20A
- (Voltage)额定电压: 125V
- (Amperage)额定电流: 7A 12A 15A
- (Temperature Rating)温度: 60°C
- (Weight)重量: 20g-50g
- (Color)颜色: User-defined
- (Cable Length)长度: User-defined
- (Plug Models Desc)模型描述: Type 2P
- (Plug Material)插头材质: Nickel Coated Brass & PBT
- (Cable Conductor Structure)线材导体结构: 2 Poles 2 Wires
- (Cable Insulating Sheath Material)线材绝缘护套材料: PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
- (Cable Conductor Material)线材导体材质: Oxygen free copper (OFCU)
- (Approvals)认证: PSE
- (Standard)标准: Japan JIS C 8303
- (Quality System)质量体系: ISO9001:2008
- (Testing)测试: SGS/TUV
- (Environmental)环保: ROHS,REACH,PAHS
- (Environmental mark)环保标识:
- (Patent)专利: NYC
- (Country of Origin)产地: Made in China
2x0.75mm² 7A, 125V~ (H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
2x1.25mm² 12A, 125V~ (H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
2x2.0mm² 15A, 125V~ (H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
