Japan electrical outlets & plugs（日本）

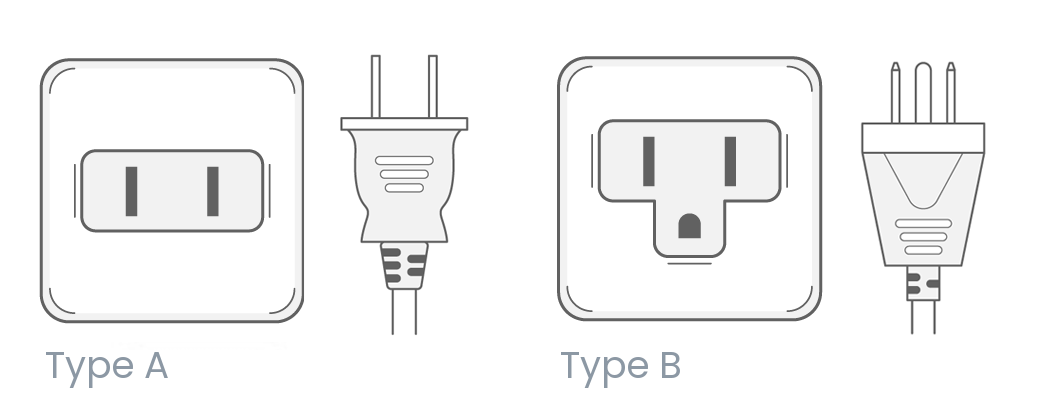

Japan uses power outlets and plugs of types A & B. Take a look at the pictures below to see what these plugs and power sockets look like:
Type A - Mostly used in the US, Canada, Mexico, Central America, China and Japan. No other plug types will fit in a type A outlet.
Type B - Similar to type A, but with an extra pin for grounding. Mainly used in the US, Canada, Mexico, Central America and Japan. Plugs of type A will also fit into a type B socket.
Even though the US and Japan both use plugs and outlets of type A and B they actually are not entirely the same. One of the two pins on US plugs is wider whereas in Japan both pins are the same width. This means that Japanese plugs can be used in the US, but US plugs often don't fit in Japanese outlets. Electricity in Japan - voltage and frequency All power sockets in Japan provide a standard voltage of 100V with a standard frequency of 50Hz & 60Hz.
-
Model
FH-2Model Desc
Type 2PVoltage
125V 250VEnvironmental
ROHS,REACH,PAHSApprovals
PSEStandard
Japan JIS C 8303Amperage
7A 12A 15ACountry of origin
Made in China

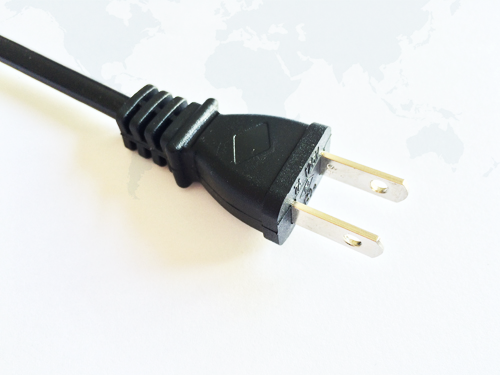

Japan 2 prong power cord plug with PSE certification. Rated up to 15A 125V, 12A 125V or 7A 125V. Built to the JIS-C-8303 ungrounded Japanese power cord plug standard with IEC C7.Our Japanese power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
-
Model
FH-2Model Desc
Type 2PVoltage
125VEnvironmental
ROHS,REACH,PAHSApprovals
PSEStandard
Japan JIS C 8303Amperage
7A 12A 15ACountry of origin

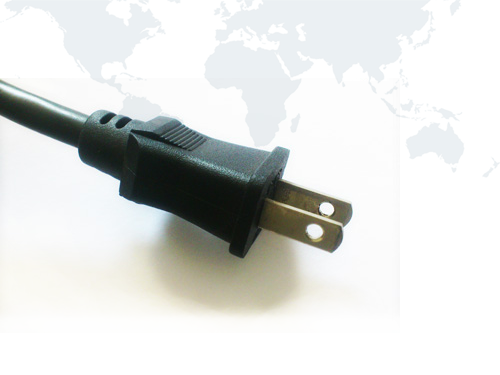

Made in ChinaJapan Power Cords, 7A, 12A, 15A 125V, Type A Plug. The Japan AC Cords according to JIS C 8303 Standards with PSE certification. Non-Rewirable Plug 2 poles without Earthing Contact Moulded with Non-rewirable Flexible Cords. This Japan Two prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Japan market. Our Japan Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.
-
Model
FH-20Model Desc
Type 2PVoltage
250VEnvironmental
ROHS,REACH,PAHSApprovals
PSEStandard
Japan JIS C 8303Amperage
7A 12A 15ACountry of origin
Made in China
-

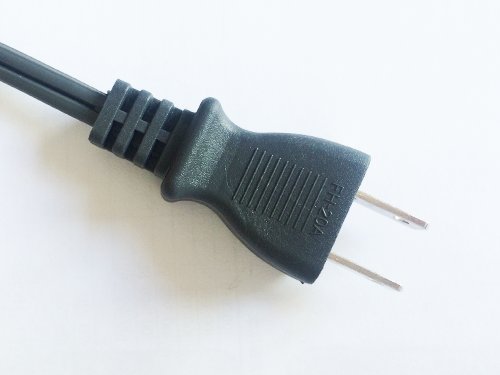

Model
FH-20AModel Desc
Type 2PVoltage
125VEnvironmental
ROHS,REACH,PAHSApprovals
PSEStandard
Japan JIS C 8303Amperage
7A 12A 15ACountry of origin
Made in ChinaJapan Power Cords, 7A, 12A, 15A 125V, Type A Plug. The Japan AC Cords according to JIS C 8303 Standards with PSE certification. Non-Rewirable Plug 2 poles without Earthing Contact Moulded with Non-rewirable Flexible Cords. This Japan Two prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Japan market. Our Japan Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.
-
We produce power cords and plugs for all countries in the world
-
Click here to contact us
NingYang CO.,Ltd.(NYC)
