- Samples date :1-7days,Free with freight collect
- Delivery date :15-22 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :Wire Transfer
Japan 2 prong power cord plug with PSE certification. Rated up to 15A 125V, 12A 125V or 7A 125V. Built to the JIS-C-8303 ungrounded Japanese power cord plug standard with IEC C7.Our Japanese power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

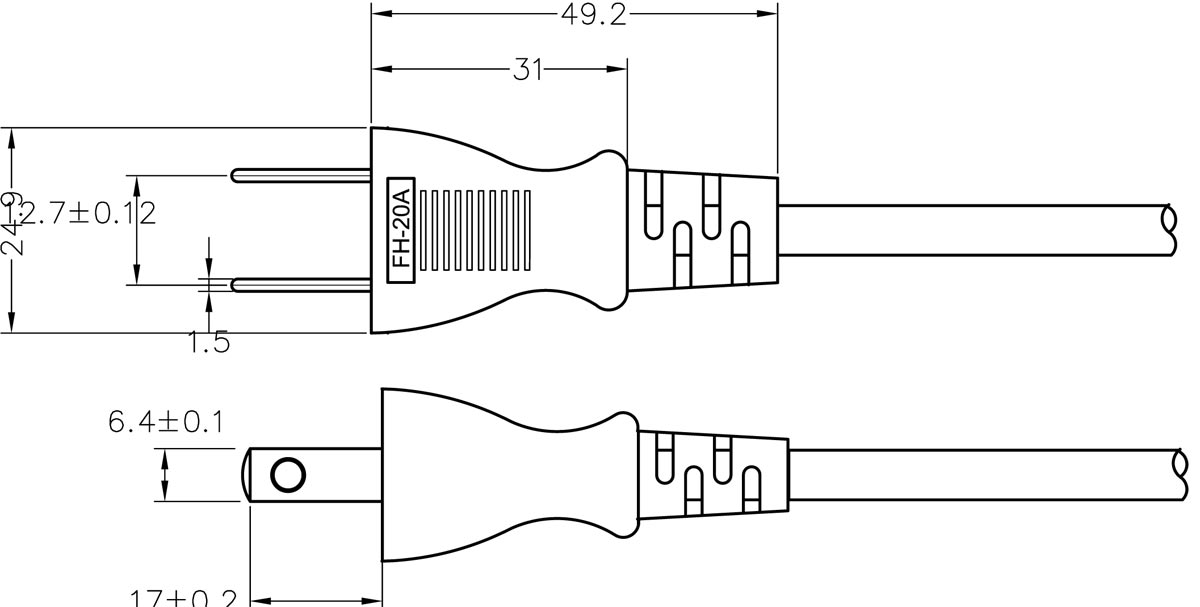

Japan PSE Power Cords JET Standard FH-2 FH-2CR Drawing (RoHS COMPLIANT)
FH-2/PSE/Japan JIS C 8303 (NINGBO NINGYANG)
Japan PSE Power Cords JET Standard FH-2 FH-2CR End Drawing (RoHS COMPLIANT)
FH-2/PSE/Japan JIS C 8303 (NINGBO NINGYANG)
- (Model)型号： FH-2
- (Voltage)额定电压: 125V 250V
- (Amperage)额定电流: 7A 12A 15A
- (Temperature Rating)温度: 60°C
- (Weight)重量: 20g-50g
- (Color)颜色: User-defined
- (Cable Length)长度: User-defined
- (Plug Models Desc)模型描述: Type 2P
- (Plug Material)插头材质: Nickel Coated Brass & PBT
- (Cable Conductor Structure)线材导体结构: 2 Poles 2 Wires
- (Cable Insulating Sheath Material)线材绝缘护套材料: PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
- (Cable Conductor Material)线材导体材质: Oxygen free copper (OFCU)
- (Approvals)认证: PSE
- (Standard)标准: Japan JIS C 8303
- (Quality System)质量体系: ISO9001:2008
- (Testing)测试: SGS/TUV
- (Environmental)环保: ROHS,REACH,PAHS
- (Environmental mark)环保标识:
- (Patent)专利: NYC
- (Country of Origin)产地: Made in China
2x0.75mm² 7A, 125V~ (H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
2x1.25mm² 12A, 125V~ (H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
2x2.0mm² 15A, 125V~ (H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
