- Samples date :1-7days,Free with freight collect
- Delivery date :15-22 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :Wire Transfer

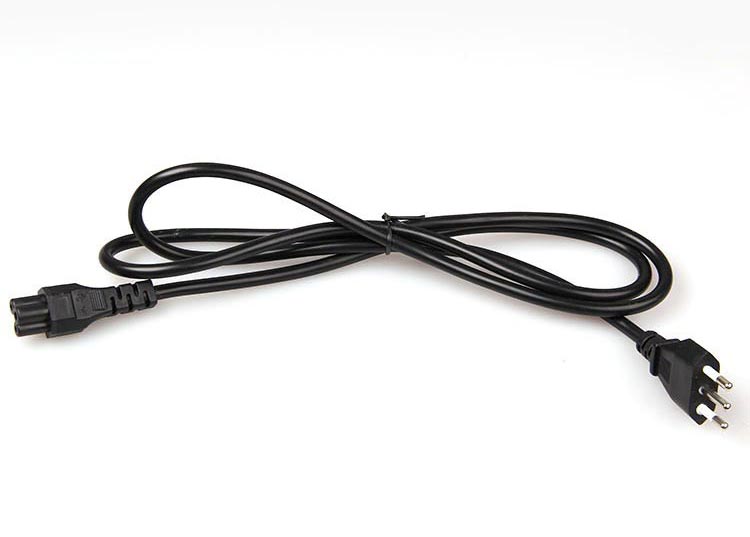

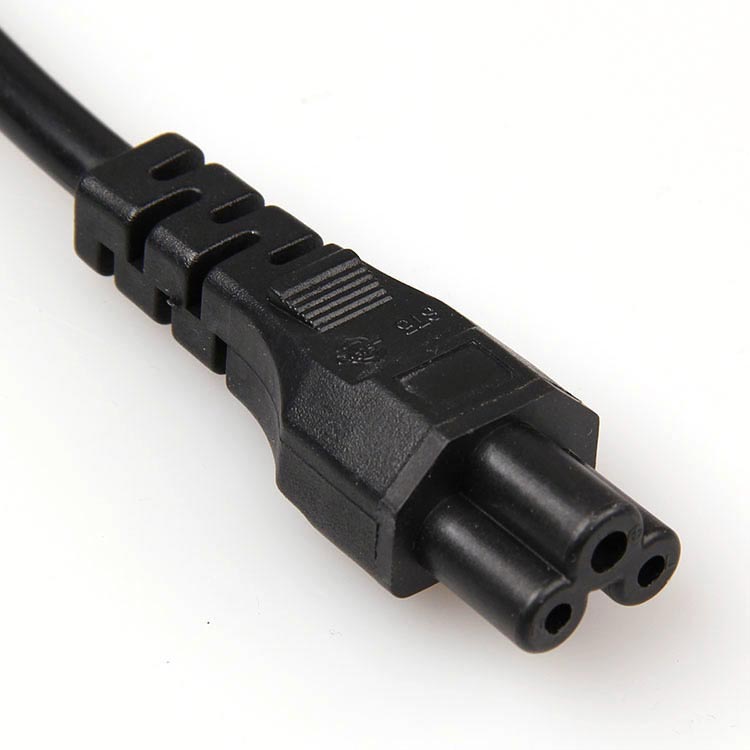

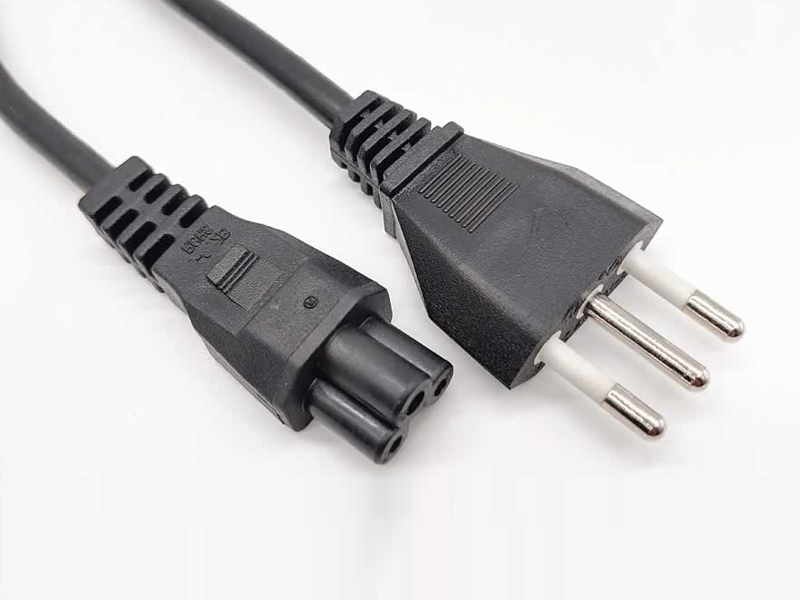

Italian standard CEI23-16 Plug to IEC 60320 C5 Connector Power Cord with IMQ / VDE Approved is often referred to as the "Clover Type Power Cable ~ Cloverleaf ~ Mickey Mouse Laptop / Notebook / Notepad Power Adapter ~ Lead ~ Mains ~ IEC power cord receptacle. These IEC C5 power cords are commonly used in a variety of applications including electric computer,projector, portable electronics, notebook computers and game systems.all of our plugs and socket Italy are fully molded with high quality and RoHS / REACH compliant.

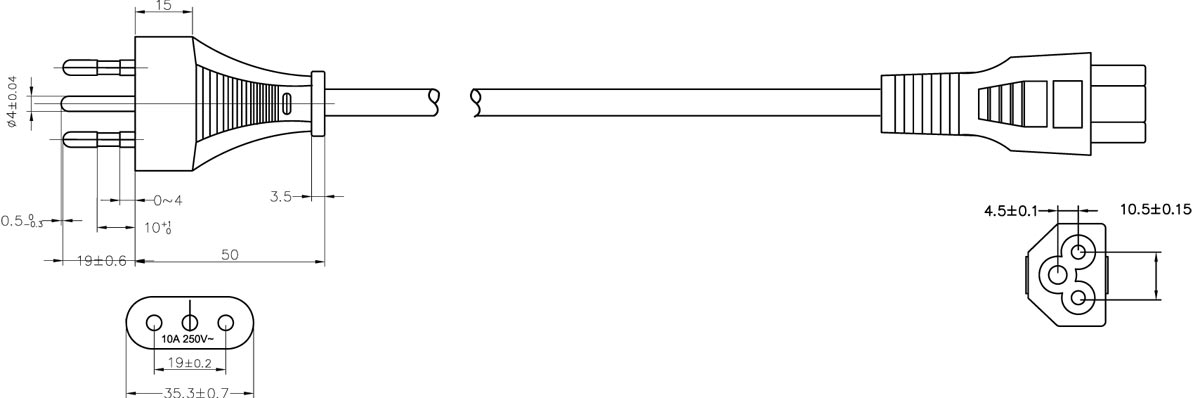

Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5 Drawing (RoHS COMPLIANT)
IMQ02 C5/IMQ/CEI 23-50, IEC 60320 C5 (NINGBO NINGYANG)
Italy Plug IMQ Power cord IMQ02 end IEC 60320 C5 End Drawing (RoHS COMPLIANT)
IMQ02 C5/IMQ/CEI 23-50, IEC 60320 C5 (NINGBO NINGYANG)
- (Model)型号： IMQ02 C5
- (Voltage)额定电压: 250V
- (Amperage)额定电流: 7.5A
- (Temperature Rating)温度: 60°C
- (Weight)重量: 20g-50g
- (Color)颜色: User-defined
- (Cable Length)长度: User-defined
- (Plug Models Desc)模型描述: Type 2P
- (Plug Material)插头材质: Nickel Coated Brass & PBT
- (Cable Conductor Structure)线材导体结构: 2 Poles 2 Wires
- (Cable Insulating Sheath Material)线材绝缘护套材料: PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
- (Cable Conductor Material)线材导体材质: Oxygen free copper (OFCU)
- (Approvals)认证: IMQ
- (Standard)标准: CEI 23-50, IEC 60320 C5
- (Quality System)质量体系: ISO9001:2008
- (Testing)测试: SGS/TUV
- (Environmental)环保: ROHS,REACH,PAHS
- (Environmental mark)环保标识:
- (Patent)专利: NYC
- (Country of Origin)产地: Made in China
3x0.5mm² H03VV-F
3x0.75mm² H03VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F
3x1.0mm² H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F, H07RN-F
3x1.5mm² H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F, H07RN-F
