Certifications Approval and Compliances

CCC

China CCC Power Cords C03

Plug Standard GB 2099.1-1996, GB 1002-1996, 6A 2 pole 2 wires,non-polarized, non-grounding Type A Plug Connector IEC 60320 (320) C-7, C-17, Unterminated. China GB2009 (Chinese 6 A/250 V) and compatible types (Type A), connected with a two-wire ungrounded

Samples date :
1-7days,Free with freight collect
Delivery date :
15-22 days
MOQ :
6ft-3000pcs/4ft-5000pcs
Packing :
Export cartons,pallets,Express box
Shipping :
By Sea,Air,TNT,FedEx
Payment :
Wire Transfer

Inquiry

Message

Product Info

<< Back to China CCC Power Cords

Description产品描述

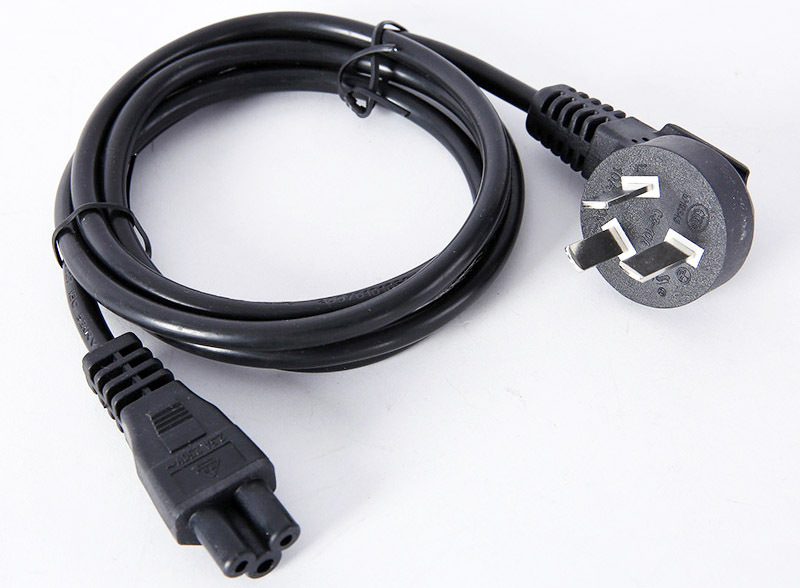

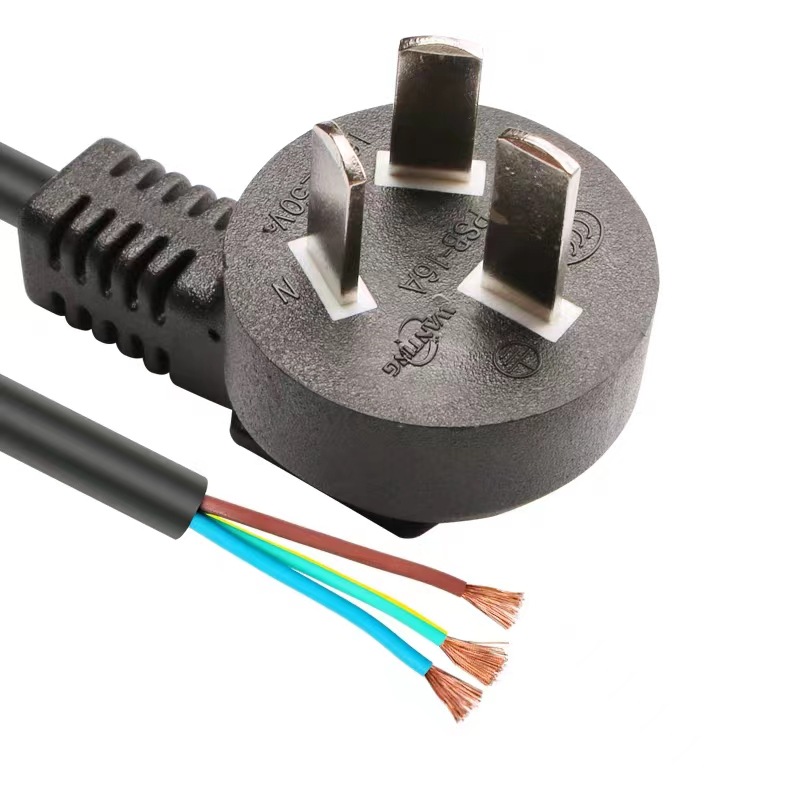

GB2099 China 10A right angle plug cordset with CCC/3C certification,Built to GB2099 standard and designed for China 3 conductor power supply cord applications,With IEC C5 , With IEC C13, With IEC C15 , With IEC C19 describe China plug molded with IEC 60320 standard

Features（特点）

The quality is good,Durable,Environmental protecti

Details 产品详情

China CCC Power Cords

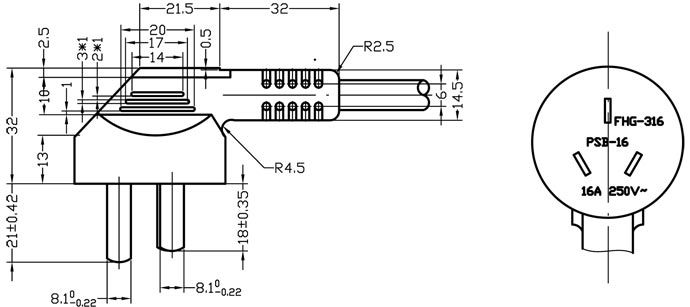

China CCC Power Cords C03 Drawing (RoHS COMPLIANT)

C03/CCC/GB2099 (NINGBO NINGYANG)

End and connector(尾部及连接器)

China CCC Power Cords C03 End Drawing (RoHS COMPLIANT)

C03/CCC/GB2099 (NINGBO NINGYANG)

Specifications（规格）

(Model)型号： C03
(Voltage)额定电压: 250V
(Amperage)额定电流: 10A
(Temperature Rating)温度: 60°C
(Weight)重量: 20g-50g
(Color)颜色: User-defined
(Cable Length)长度: User-defined

Material(材质)

(Plug Models Desc)模型描述: Type 2P-E
(Plug Material)插头材质: Nickel Coated Brass & PBT
(Cable Conductor Structure)线材导体结构: 3 Poles 3 Wires
(Cable Insulating Sheath Material)线材绝缘护套材料: PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
(Cable Conductor Material)线材导体材质: Oxygen free copper (OFCU)

Quality （质量）

(Approvals)认证: CCC
(Standard)标准: GB2099
(Quality System)质量体系: ISO9001:2008
(Testing)测试: SGS/TUV
(Environmental)环保: ROHS,REACH,PAHS
(Environmental mark)环保标识:

More and more （更多）

(Patent)专利: NYC
(Country of Origin)产地: Made in China

Available Cord / Cables Wire Styles

CCC 227 IEC 52(RVV) 2x0.5-0.75
CCC 227 IEC 52(RVV) 3x0.5-0.75
CCC 227 IEC 53(RVV) 2~5x0.75-2.5

Sea and air freight

Free sample(免费样品)

PDF Support(PDF支持)

China CCC Power Cords C03.PDF Support
